1 – 60 TPDCapacity
Flakes · Bricks · CubesIce shapes
Special Purpose
Overview

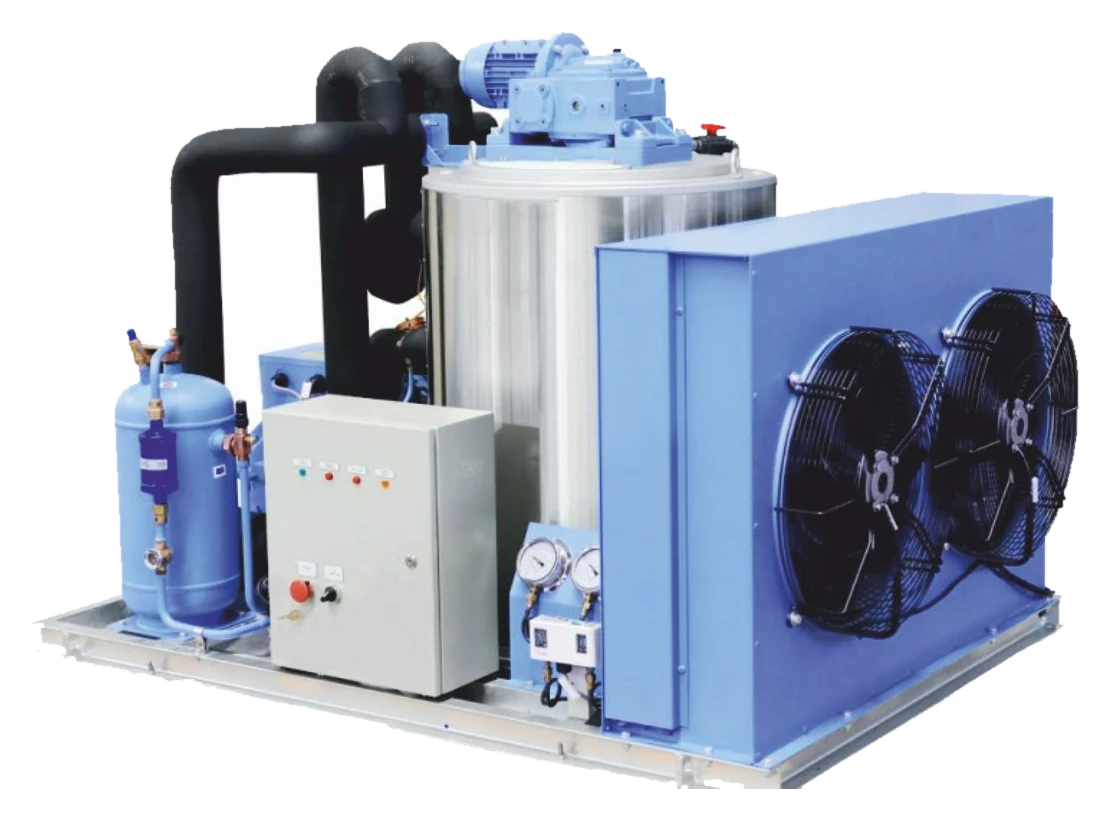

Teqtive ice machines produce flake, brick (block) and cube ice for industrial and commercial use, with capacities from 1 to 60 tonnes per day.
Flake ice machines use a vertical drum evaporator with motor, gear and shaft assembly, and the plants can run on scroll, reciprocating or screw compressors to suit the daily output.
Technical specifications
| Type | Air cooled / Water cooled |
|---|---|
| Ice Shapes | Flakes, bricks, cubes |
| Capacity Range | 01 TPD to 60 TPD |
| Compressor Type | Sealed / Semi-hermetic / Open reciprocating / Screw, sealed scroll |
| Evaporator Type | Vertical drum shaped with motor, gear and shaft assembly |
| Condenser Type | Finned tube type, with internally grooved tubes and aluminium fins and hydrophilic coating (air cooled), shell & tubes type (water cooled) |
| Refrigeration Controls | Valves, filter dryer, solenoid valves, expansion valve |
| Refrigerant | R404a / R717 |
| Electrical Safety | Motor overload protection, SPP/RP/OV/UV protection |
| Mechanical Safety | LP/HP/Anti-freeze/Chilled water flow switch |
| Design Ambient Temp. | 0 °C to 50 °C |
| Controller Type | PLC / Microprocessor / PID |
| Starter | DOL / VFD / Soft starter (Optional) |
Typical applications
- Fish and seafood preservation
- Concrete cooling on construction sites
- Poultry and meat processing
- Chemical process temperature control
- Supermarket and food display
