50 – 50,000 CFMCapacity
PDP +2 °CDew point
Air & Compressed Air
Overview

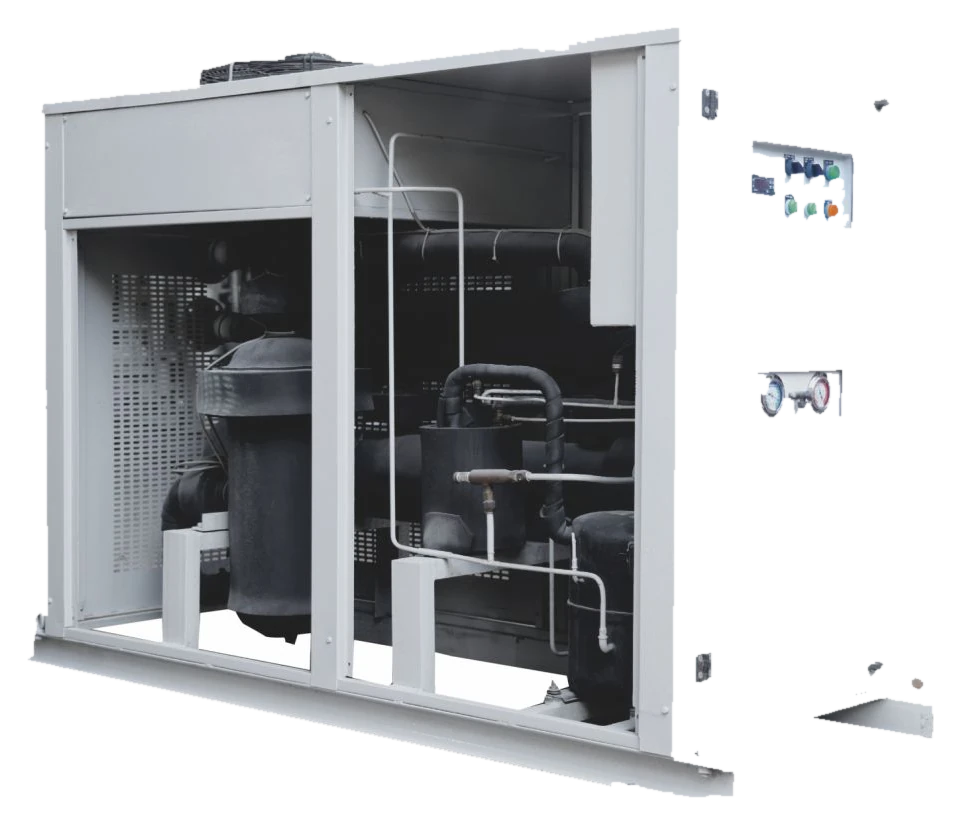

Moisture in compressed air corrodes pipework, damages pneumatic tools and spoils product. Teqtive refrigerated and glycol air dryers cool compressed air to condense and drain water, delivering a +2 °C pressure dew point.
Dryers are built for 50 to 50,000 CFM and working pressures from 5 bar(g) up to 50 bar(g), covering both plant air and high-pressure applications.
Technical specifications
| Type | Air cooled / Water cooled |
|---|---|
| Capacity Range | 50 CFM to 50,000 CFM |
| Pressure Dew Point | (+) 2 °C |
| Atmospheric Dew Point | (−) 20 °C |
| Pressure Range | 5 Bar (g) to 50 Bar (g) |
| Compressor Type | Sealed scroll / Semi-hermetic / Open reciprocating / Screw |
| Evaporator Type | Shell & tube type CS/SS shell and CS/SS tubes / BPHE |
| Condenser Type | Finned tube type, with internally grooved tubes and aluminium fins and hydrophilic coating (air cooled), shell & tube type (water cooled) |
| Heat Exchanger | Shell & tube type CS/SS shell and CS/SS tubes / BPHE |
| Refrigeration Controls | Valves, filter dryer, solenoid valves, expansion valve |
| Refrigerant | R-407c, R-134a, R404a (CFC Free) |
| Electrical Safety | Motor overload protection, SPP/RP/OV/UV protection |
| Mechanical Safety | LP/HP/Anti-freeze/Chilled water flow switch |
| Design Ambient Temp. | 0 °C to 50 °C |
| Controller Type | PLC / Microprocessor / PID |
| Starter | DOL / VFD / Soft starter (Optional) |
Typical applications
- Plant compressed-air systems
- Pneumatic instruments and controls
- PET bottle blowing (high pressure)
- Paint shops and spray booths
- Pharmaceutical and food-contact air
