Industrial chiller catalogue

Twenty product lines with full specifications — capacity, temperature reach, compressor, evaporator, condenser, refrigerant, safeties, controls and starters. Every figure is as published in the Teqtive catalogue.

Request a quote Download PDF

Process Chillers6 lines

5 – 78 TRCapacity

+25 °C to −10 °CTemperature

Air Cooled

Air Cooled Scroll Chiller

Compact plug-and-play cooling for light and medium process loads.

Capacity Range	5 TR to 78 TR
Temperature Range	(+) 25 °C to (−) 10 °C
Compressor Type	Scroll
Evaporator Type	Shell & tube type with CS shell & copper tubes (Standard) / BPHE
Condenser Type	Finned tube type, with internally grooved tubes and aluminium fins and hydrophilic coating
Refrigeration Controls	Valves, filter dryer, solenoid valves, expansion valve
Refrigerant	R-407c, R-134a, R-410a, R404a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PID (Standard) / PLC / Microprocessor
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

40 – 500 TRCapacity

+25 °C to −10 °CTemperature

Air Cooled

Air Cooled Screw Chiller

Economized screw compressors for large, continuous industrial duty.

Capacity Range	40 TR to 500 TR
Temperature Range	(+) 25 °C to (−) 10 °C
Compressor Type	Compact semi-hermetic / open screw
Evaporator Type	Shell & tube type with CS shell & copper tubes (Standard) / BPHE
Condenser Type	Finned tube type, with internally grooved tubes and aluminium fins and hydrophilic coating
Operation	Economized
Refrigeration Controls	Valves, filter dryer, solenoid valves, electronic expansion valve
Refrigerant	R-407c, R-134a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	Suction/discharge pressure switch/transmitter, suction/discharge/chilled water/cooling water temperature sensors/transmitters, chilled water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

Teqtive Air Cooled Reciprocating Chiller

1 – 120 TRCapacity

+25 °C to −35 °CTemperature

Air Cooled

Air Cooled Reciprocating Chiller

Rugged reciprocating units that reach deep sub-zero set points.

Capacity Range	1 TR to 120 TR
Temperature Range	(+) 25 °C to (−) 35 °C
Compressor Type	Sealed / Semi-hermetic / Open reciprocating
Evaporator Type	Shell & tube type with CS shell & copper tubes (Standard) / BPHE
Condenser Type	Finned tube type, with internally grooved tubes & aluminium fins and hydrophilic coating
Refrigeration Controls	Valves, filter dryer, solenoid valves, expansion valve
Refrigerant	R-407c, R-134a, R404a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PID (Standard) / PLC / Microprocessor
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

5 – 90 TRCapacity

+25 °C to −10 °CTemperature

Water Cooled

Water Cooled Scroll Chiller

Quiet, efficient cabinet chillers for plants with cooling-tower water.

Capacity Range	5 TR to 90 TR
Temperature Range	(+) 25 °C to (−) 10 °C
Compressor Type	Scroll
Evaporator Type	Shell & tube type with CS shell & copper tubes (Standard) / BPHE
Condenser Type	Shell & finned tube type with CS shell & copper finned tubes (Standard) / BPHE
Refrigeration Controls	Valves, filter dryer, solenoid valves, expansion valve
Refrigerant	R-407c, R-134a, R-410a, R404a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water/CT water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PID (Standard) / PLC / Microprocessor
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

40 – 500 TRCapacity

+25 °C to −10 °CTemperature

Water Cooled

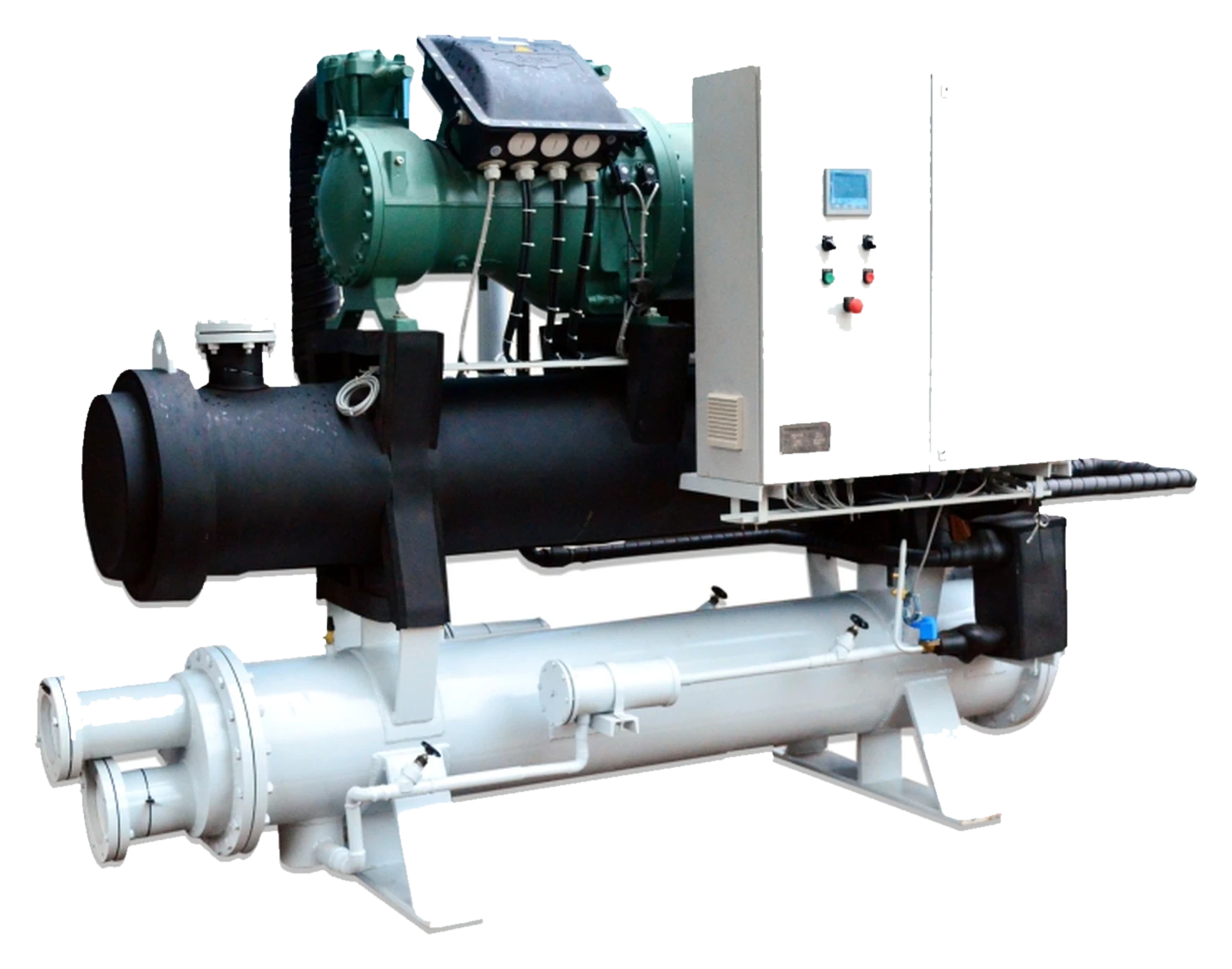

Water Cooled Screw Chiller

Open-frame screw chillers built for round-the-clock heavy process loads.

Capacity Range	40 TR to 500 TR
Temperature Range	(+) 25 °C to (−) 10 °C
Compressor Type	Compact semi-hermetic / open screw
Evaporator Type	Shell & tube type with CS shell & copper tubes (Standard) / BPHE
Condenser Type	Shell & finned tubes type (Standard) / BPHE
Operation	Economized
Refrigeration Controls	Suction/discharge pressure switch/transmitter, suction/discharge/chilled water/cooling water temperature sensors/transmitters, chilled water/CT water flow switch
Refrigerant	R-407c, R-134a, R404a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water/CT water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

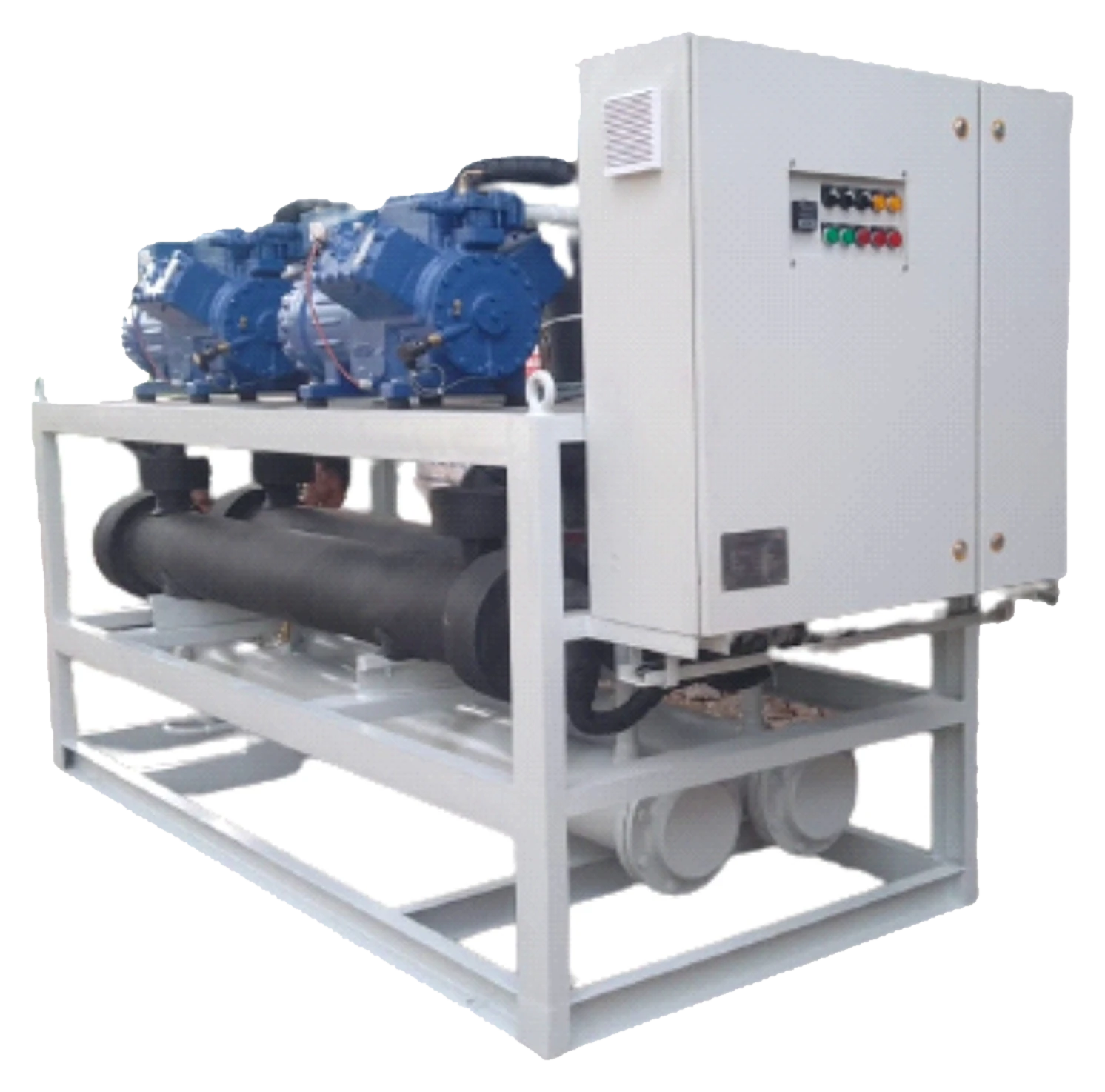

Teqtive Water Cooled Reciprocating Chiller

1 – 120 TRCapacity

+30 °C to −40 °CTemperature

Water Cooled

Water Cooled Reciprocating Chiller

Multi-compressor skids with the widest temperature reach in the range.

Capacity Range	1 TR to 120 TR
Temperature Range	(+) 30 °C to (−) 40 °C
Compressor Type	Sealed / Semi-hermetic / Open reciprocating
Evaporator Type	Shell & tube type with CS shell & copper tubes (Standard) / BPHE
Condenser Type	Shell & finned tube type
Refrigeration Controls	Valves, filter dryer, solenoid valves, expansion valve
Refrigerant	R404a, R-407c, R-134a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PID (Standard) / PLC / Microprocessor
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

Low Temperature & Ammonia4 lines

1 – 500 TRCapacity

0 °C to −40 °CTemperature

Low Temperature

Brine Chiller

Glycol, methanol and CaCl₂ brine cooling down to −40 °C.

Brine	Glycol, methanol, CaCl₂ etc.
Capacity Range	1 TR to 500 TR
Temperature Range	0 °C to (−) 40 °C
Compressor Type	Semi-hermetic screw / reciprocating, open screw / reciprocating
Evaporator Type	Shell & tube type with CS/SS shell & copper/SS tubes, BPHE
Condenser Type	Shell & finned tube type
Operation	Economized
Refrigeration Controls	Suction/discharge/oil pressure switch/transmitter, suction/discharge/oil/chilled water/cooling water temperature sensors/transmitters, chilled water/CT water flow switch
Refrigerant	R-407c, R-134a, R404a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/pressure/Oil/Anti-freeze/Chilled water/CT water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

Teqtive Cascade Low Temperature Brine Chiller

1 – 100 TRCapacity

−35 °C to −70 °CTemperature

Low Temperature

Cascade Low Temperature Brine Chiller

Two-refrigerant cascade systems for ultra-low −70 °C processes.

Brine	Glycol, methanol, CaCl₂ etc.
Capacity Range	1 TR to 100 TR
Temperature Range	(−) 35 °C to (−) 70 °C
Compressor Type	Semi-hermetic screw / reciprocating, open screw / reciprocating
Evaporator Type	Shell & tube type with CS/SS shell & copper/SS tubes, BPHE
Condenser Type	Shell & finned tube type
Operation	Economized
Refrigeration Controls	Suction/discharge/oil pressure switch/transmitter, suction/discharge/oil/chilled water/cooling water temperature sensors/transmitters, chilled water/CT water flow switch
Refrigerant	R-23, R404a, R717, R-407c, R-134a
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/pressure/Oil/Anti-freeze/Chilled water/CT water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

Teqtive Two Stage Low Temperature Brine Chiller

1 – 200 TRCapacity

−25 °C to −45 °CTemperature

Low Temperature

Two Stage Low Temperature Brine Chiller

Two-stage compression for efficient −45 °C brine duty.

Brine	Glycol, methanol, CaCl₂ etc.
Capacity Range	1 TR to 200 TR
Temperature Range	(−) 25 °C to (−) 45 °C
Compressor Type	Semi-hermetic screw / reciprocating, open screw / reciprocating
Evaporator Type	Shell & tube type with CS/SS shell & copper/SS tubes, BPHE
Condenser Type	Shell & finned tube type
Operation	Economized
Refrigeration Controls	Suction/discharge/oil pressure switch/transmitter, suction/discharge/oil/chilled water/cooling water temperature sensors/transmitters, chilled water/CT water flow switch
Refrigerant	R404a / R-717
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/pressure/Oil/Anti-freeze/Chilled water/CT water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

20 – 1000 TRCapacity

0 °C to −40 °CTemperature

Natural Refrigerant

Ammonia Chiller & Refrigeration

R-717 plants up to 1000 TR with falling-film and pillow-plate options.

Fluid / Brine	Water, glycol, methanol, CaCl₂ etc.
Capacity Range	20 TR to 1000 TR
Temperature Range	0 °C to (−) 40 °C
Compressor Type	Open screw / Reciprocating
Evaporator Type	Shell & tube type with CS/SS shell & CS/SS tubes, semi-welded PHE, IBT, falling film pillow plate chiller
Condenser Type	Shell & tube type, semi-welded PHE, evaporative condenser, falling film pillow plate chiller
Refrigeration Controls	Suction/discharge/oil pressure switch/transmitter, suction/discharge/oil/chilled water/cooling water temperature sensors/transmitters, chilled water/CT water flow switch
Refrigerant	R-717
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water/CT water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

Special Purpose5 lines

Teqtive CO₂, N₂O & Gas Liquefaction Systems

10 – 10,000 kg/hCapacity

−25 °C to −70 °CTemperature

Gas Liquefaction

CO₂, N₂O & Gas Liquefaction Systems

Skid-mounted liquefaction systems for CO₂, N₂O and other industrial gases.

Liquefaction Gas	CO₂, N₂O etc.
Capacity Range	10 kg/h to 10,000 kg/h
Temperature Range	(−) 25 °C to (−) 70 °C
Compressor Type	Semi-hermetic screw / reciprocating, open screw / reciprocating
Evaporator Type	Shell & tube type with CS shell & SS/copper tubes
Condenser Type	Shell & tube type / semi-welded PHE / evaporative condenser
Refrigeration Controls	Suction/discharge/oil pressure switch/transmitter, suction/discharge/oil/chilled water/cooling water temperature sensors/transmitters, chilled water/CT water flow switch
Refrigerant	R-717
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/pressure/Oil/Anti-freeze/Chilled water/CT water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

Teqtive Batching Chiller for Batching Plant

20 – 360 TRCapacity

+4 °CTemperature

Construction

Batching Chiller for Batching Plant

Dust- and mud-tolerant chillers for concrete batching plants.

Type	Air cooled / Water cooled
Capacity Range	20 TR to 360 TR
Temperature Range	(+) 4 °C
Compressor Type	Sealed scroll / Semi-hermetic reciprocating / screw
Evaporator Type	Shell & tube with CS shell & copper tubes, BPHE (ready to handle muddy water)
Condenser Type	Finned tube type, with internally grooved tubes & aluminium fins and hydrophilic coating, shell & tube type (ready to work in dusty atmosphere)
Refrigeration Controls	Valves, filter dryer, solenoid valves, expansion valve
Refrigerant	R-407c, R-134a, R404a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Chilled water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

Teqtive Falling Film Chiller for 1 °C Potable Water

100 – 50,000 LPHCapacity

+25 °C to +0.5 °CTemperature

Food & Dairy

Falling Film Chiller for 1 °C Potable Water

Pillow-plate falling-film chillers for near-freezing potable water.

Type	Air cooled / Water cooled
Capacity Range	100 LPH to 50,000 LPH
Temperature Range	(+) 25 °C to (+) 0.5 °C
Compressor Type	Sealed scroll / Semi-hermetic reciprocating / screw
Evaporator Type	Pillow plate type
Condenser Type	Finned tube type, with internally grooved tubes and aluminium fins and hydrophilic coating (air cooled), shell & tube type (water cooled)
Refrigeration Controls	Valves, filter dryer, solenoid valves, expansion valve
Refrigerant	R-407c, R-134a, R404a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

0.5 – 150 TRCapacity

+25 °C to +40 °CTemperature

Machine Tools

Oil Chiller

Precise hydraulic and spindle oil temperature control.

Type	Air cooled / Water cooled
Capacity Range	0.5 TR to 150 TR
Temperature Range	(+) 25 °C to (+) 40 °C
Compressor Type	Sealed / Semi-hermetic / Open reciprocating / Screw, sealed scroll
Evaporator Type	Shell & tube type with CS shell & copper tubes, BPHE
Condenser Type	Finned tube type, with internally grooved tubes and aluminium fins and hydrophilic coating (air cooled), shell & tube type (water cooled)
Refrigeration Controls	Valves, filter dryer, solenoid valves, expansion valve
Refrigerant	R-407c, R-134a, R404a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

1 – 60 TPDCapacity

Flakes · Bricks · CubesIce shapes

Ice

Ice Machine

Flake, brick and cube ice plants from 1 to 60 tonnes per day.

Type	Air cooled / Water cooled
Ice Shapes	Flakes, bricks, cubes
Capacity Range	01 TPD to 60 TPD
Compressor Type	Sealed / Semi-hermetic / Open reciprocating / Screw, sealed scroll
Evaporator Type	Vertical drum shaped with motor, gear and shaft assembly
Condenser Type	Finned tube type, with internally grooved tubes and aluminium fins and hydrophilic coating (air cooled), shell & tubes type (water cooled)
Refrigeration Controls	Valves, filter dryer, solenoid valves, expansion valve
Refrigerant	R404a / R717
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

Air & Compressed Air2 lines

50 – 50,000 CFMCapacity

+25 °C to +5 °CTemperature

Air Handling

Air Chiller / Dehumidifier

Direct air cooling and moisture control for process rooms.

Type	Air cooled / Water cooled
Capacity Range	50 CFM to 50,000 CFM
Temperature Range	(+) 25 °C to (+) 5 °C
Compressor Type	Sealed / Semi-hermetic / Open reciprocating
Evaporator Type	Finned tube type with copper/SS tubes and aluminium/SS fins
Condenser Type	Finned tube type, with internally grooved tubes and aluminium fins and hydrophilic coating (air cooled), shell & tube type (water cooled)
Refrigeration Controls	Valves, filter dryer, solenoid valves, expansion valve
Refrigerant	R-407c, R-134a, R404a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

Teqtive Air Dryer / Glycol Based Air Dryer

50 – 50,000 CFMCapacity

PDP +2 °CDew point

Compressed Air

Air Dryer / Glycol Based Air Dryer

Refrigerated and glycol dryers for clean, dry compressed air.

Type	Air cooled / Water cooled
Capacity Range	50 CFM to 50,000 CFM
Pressure Dew Point	(+) 2 °C
Atmospheric Dew Point	(−) 20 °C
Pressure Range	5 Bar (g) to 50 Bar (g)
Compressor Type	Sealed scroll / Semi-hermetic / Open reciprocating / Screw
Evaporator Type	Shell & tube type CS/SS shell and CS/SS tubes / BPHE
Condenser Type	Finned tube type, with internally grooved tubes and aluminium fins and hydrophilic coating (air cooled), shell & tube type (water cooled)
Heat Exchanger	Shell & tube type CS/SS shell and CS/SS tubes / BPHE
Refrigeration Controls	Valves, filter dryer, solenoid valves, expansion valve
Refrigerant	R-407c, R-134a, R404a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

Heating1 lines

3 – 2000 kWCapacity

+45 °C to +90 °CHot water

Heating

Heat Pump

Air-to-water and water-to-water heat pumps up to 90 °C hot water.

Type	Air to water, water to water
Capacity Range	3 kW to 2000 kW
Hot Water Temp. Range	(+) 45 to (+) 90 °C
Compressor Type	Sealed scroll / Semi-hermetic screw
Evaporator Type	BPHE, shell & tube type
Condenser Type	Finned tube type, with internally grooved tubes and aluminium fins and hydrophilic coating (air cooled), shell & tube type (water cooled)
Refrigeration Controls	Valves, filter dryer, solenoid valves, expansion valve
Refrigerant	R-407c, R-134a, R404a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

Condensing Units2 lines

1 – 100 TRCapacity

+10 °C to −45 °CTemperature

Condensing Units

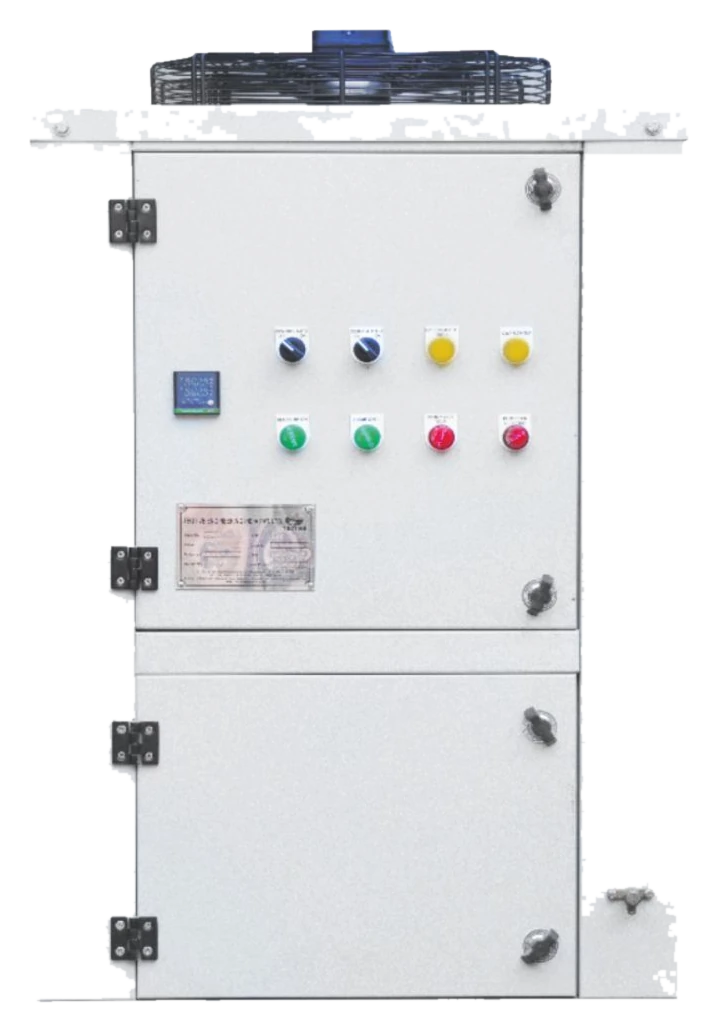

Air Cooled Condensing Unit

Outdoor condensing units for cold rooms and remote evaporators.

Capacity Range	1 TR to 100 TR
Temperature Range	(+) 10 °C to (−) 45 °C
Compressor Type	Sealed scroll / Semi-hermetic / Open reciprocating / Screw
Condenser Type	Finned tube type, with internally grooved tubes and aluminium fins and hydrophilic coating
Refrigeration Controls	Valves, filter dryer, solenoid valves, expansion valve
Refrigerant	R-407c, R-134a, R404a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details

1 – 400 TRCapacity

+10 °C to −45 °CTemperature

Condensing Units

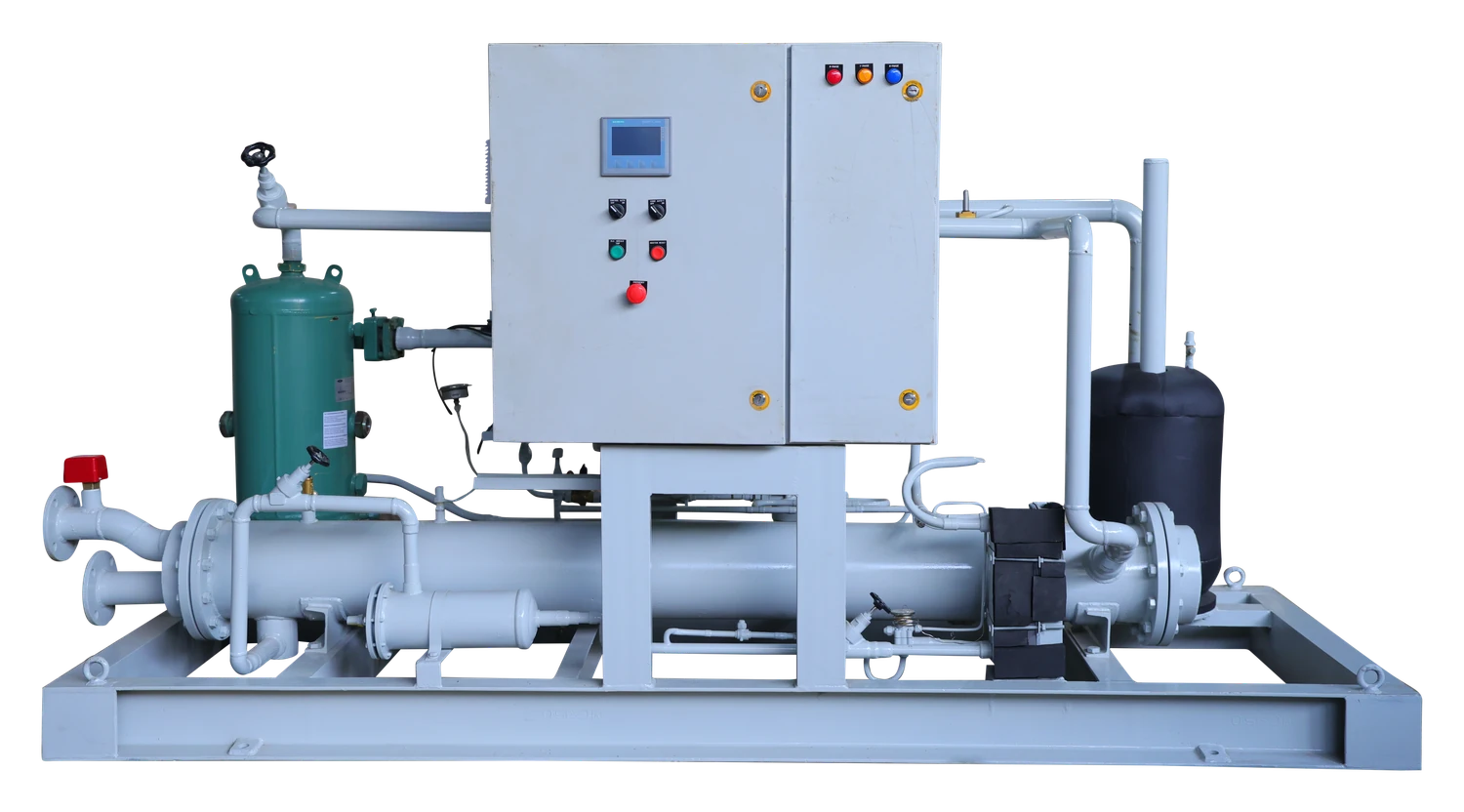

Water Cooled Condensing Unit

Compact indoor condensing skids up to 400 TR.

Capacity Range	1 TR to 400 TR
Temperature Range	(+) 10 °C to (−) 45 °C
Compressor Type	Sealed / Semi-hermetic / Open reciprocating
Condenser Type	Shell & finned tube type
Refrigeration Controls	Valves, filter dryer, solenoid valves, expansion valve
Refrigerant	R-407c, R-134a, R404a (CFC Free)
Electrical Safety	Motor overload protection, SPP/RP/OV/UV protection
Mechanical Safety	LP/HP/Anti-freeze/Chilled water flow switch
Design Ambient Temp.	0 °C to 50 °C
Controller Type	PLC / Microprocessor / PID
Starter	DOL / VFD / Soft starter (Optional)

Request a quote Full details
